Swing Hoist

Hydraulic powered swing hoists raise up to 2000 lb (1 ton) easily and safely. Swing Hoists are ideal for handling heavy, bulky loads such as single ply membrane.

Easy to assemble and operate: Swing Hoists are easily transported and can be quickly assembled. Self locking pins join the parts together. Power up and power down features put the operator in complete control and a separate winch and power unit make the hoists extremely easy to handle.

Safety: protective operator fence; swing boom unloads materials well back of roof's edge; self-locking hydraulic boom; total up and down movement control; nesting ballast weights included.

Design: split let frame design for easier transporting; improved high strength tubing; self-locking pin clamps for fast no-tool assembly; stronger yet lighter boom; cable keeper for added lifting stability; no-hardware winch mounting

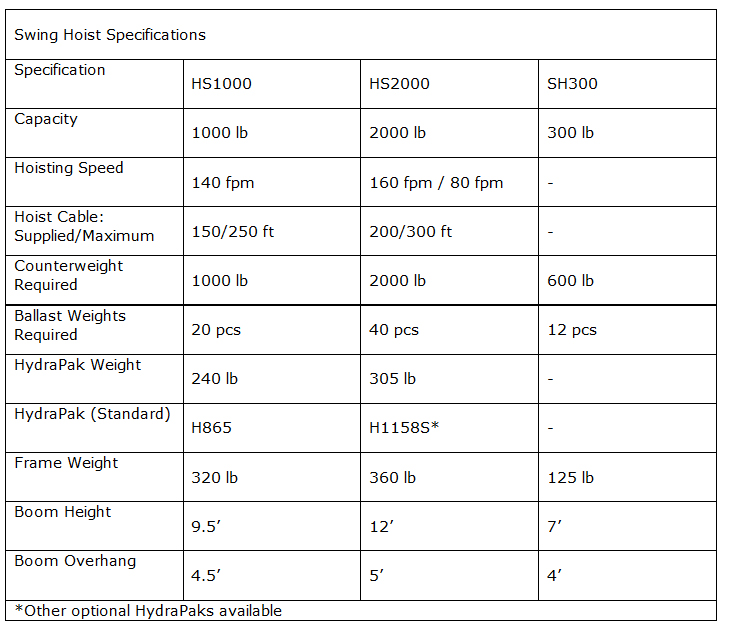

Click Here For Specifications

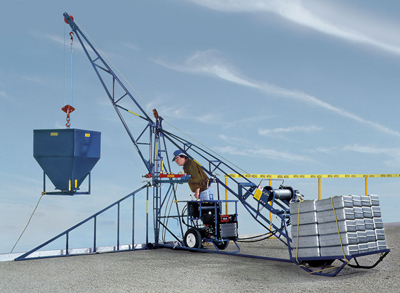

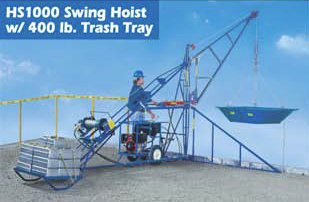

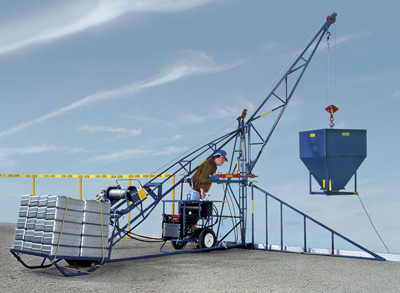

Swing Hoist 1 Swing Hoist 2 Swing Hoist 3

Swing Hoists

Part Number: 0701058

HS2000: 10 HP Briggs Intek I/C engine, electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnel

Part Number: 0700455

HS2000: 11 HP Honda engine, electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnel

Part Number: 0700445

HS2000: 13 HP Honda engine, electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnel

Part Number: 0700425

HS2000: 16 HP Briggs Vanguard engine, electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnel

Part Number: 0700430

HS2000: 18 HP Auto Idle Vanguard engine with electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnel

Part Number: 0742401

H2000: 7-1/2 HP Baldor electric motor, 3 phase, HW2000S winch with 200ft of ¼in wire rope, 40 ballast weights and funnel

Part Number: 0708036

HS1000: 8 HP Briggs Intek I/C engine, pull start, HW1000S winch with 150ft of ¼in wire rope with 20 ballast weights and funnel

Part Number: 0700415

HS1000: 7-1/2 HP Baldor electric motor, 3 phase, HW1000S winch with 150ft of ¼in wire rope with 20 ballast weights and funnel

Part Number: 0700300

HS2000: Block carton, counterweight leg, front leg assy, brace, cylinder mount, boom and 40 ballast weights

Part Number: 0700270

HS1000: Block carton, counterweight leg, front leg assy, brace, cylinder mount, boom and 20 ballast weights

Hydrawinch

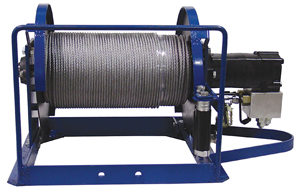

Swing Hoist Winch

Swing Hoists

Part Number: 1000413

HW2000S: for HS2000 swing hoist

Part Number: 1000412

HW1000S: for HS1000 swing hoist

Hand Swing Hoist, 300 lb Capacity

Swing Hoist Manual

Hand Swing Hoist, 300 lb Capacity

Part Number: 0200085

SH300: hand swing hoist with 12 ballast weights and funnel

Part Number: 0200086

Operator fence kit for 0200085

Part Number: 0200563

12in gin pulley for SH300
