Hand Powered Hoist & Crane Accessories

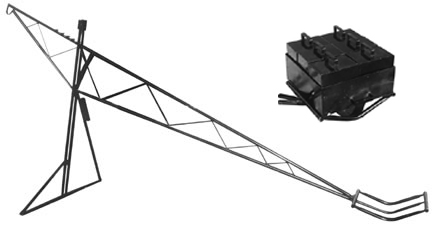

Hand Powered Hoist
Features: constructed of 1-1/4" tube; two piece assembly, no tools required
Specifications: 300 lb capacity; hook height 84in; boom length 14ft 10in; 30in overhang, ship wt 90 lb, 2 pcs
Hand Powered Hoist
Hand powered hoist
Counter balance for hand hoist

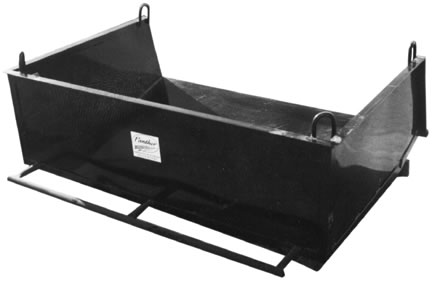

Standard hoistable trash tray 24 cu ft
Large hoistable trash tray 41 cu ft
Hoist & Crane Accessories

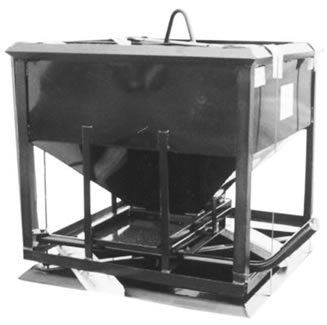

Gravel Bucket
Features: Two sizes to choose from; large hoisting eye for hoist or crane; easy operating door; self cleaning sides; heavy angle frame.
Specifications: 32" x 32" square; 28" loading height; ship wt 150 lb.
Features: Two sizes to choose from; large hoisting eye for hoist or crane; easy operating door; self cleaning sides; heavy angle frame.
Specifications: 36" x 36" square; 34" loading height; ship wt 170 lb.
Features: GB400 gravel bucket: Capacity up to 3.5 cubic ft. and 400 lbs. The bottom discharge operates by handles on either side. The trap door is reinforced.
Dimensions: 18"w x 18in d x 24" h.

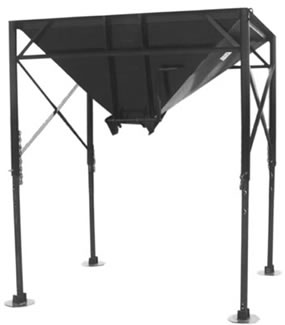

Rooftop Hooper with Steel Legs
Features: Load gravel spreaders quickly and easily; can be loaded by clam shell or gravel bucket for a continuous supply of rock; adjustable leg height to accommodate gravel spreaders and wheelbarrows; large self leveling pads that help to protect roof are attached to 4" diameter steel legs.
Specifications: Extra large 1-7/8 cubic yard capacity; ID top of hopper 77" x 60"; 3" outer lip; ship wt 600 lb

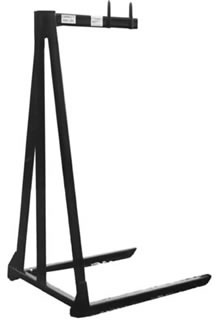

Hoisting Forks
Features: Large hoisting eye - use hoist or crane; beveled forks; flip up stops for loading rolls; works great with four wheel carts.
Specifications: 1500 lb capacity; 28" top beam; 54" throat opening; 36" width; 65" overall height; 2" fork thickness; ship wt 136 lb.
Features: Large hoisting eye - use hoist or crane; beveled forks; flip up stops for loading rolls; works great with four wheel carts.
Specifications: 2000 lb capacity; 28" top beam; 67-1/2" throat opening; 36" width; 79" overall height; 2" fork thickness; ship wt 155 lb
HF1000 hoisting fork: Pivoting fork extensions fold out to form a cradle for holding rolls of felt. Up to twelve rolls can be safely nested.
Hoist forks are also available in a 1200 lb. capacity: 31in w x 63in h x 35in d, and a 2000 lb. capacity: 48in w x 63in h x 35in d.

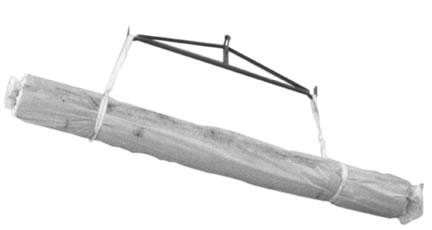

Spreader Bar & Slings
Spreader bar with set 18ft slings
Spreader bar with set 8ft slings
18ft x 2in, 2000lb sling, each
8ft x 2in, 2000lb sling, each
Hoisting tarp, 8ft x 8ft, 300lb
